Buying custom clamshell packaging isn't about memorizing plastic polymer chemistry. It comes down to basic commercial trade-offs: keeping your margins intact, stopping retail theft, and making sure boxes don't crack open inside a shipping container.
When you know how a flat plastic sheet actually turns into a rigid snap-fit container, you hold the cards. You can negotiate better piece-rates, catch tooling mistakes early, and avoid getting bad news from the port.

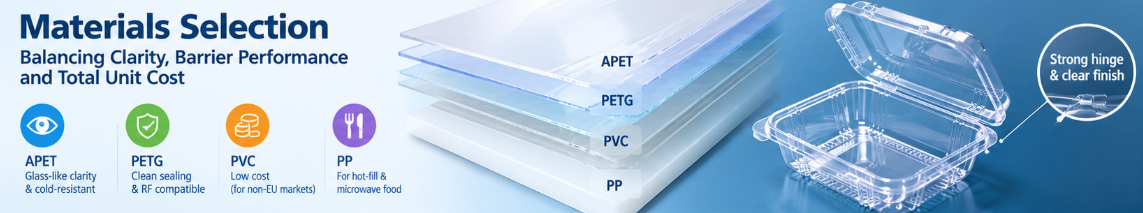

Materials Selection: Balancing Clarity, Barrier Performance, and Total Unit Cost
Every production run lives or dies by sheet selection. Pick the wrong resin up front, and you end up with cloudy display windows, split hinges, or blisters that refuse to seal on your packing line.
APET is still the default choice for retail shelves. It gives you glass-like clarity and doesn't get brittle in cold shipping container conditions. But if your packing line relies on ultrasonic sealing or high-frequency tamper-proofing, you need to switch over to PETG or PVC. PVC keeps initial costs low for non-EU markets, but strict local environmental rules mean you have to check compliance before dropping down a deposit. PETG seals clean without sparking under RF welders, but that extra cost hits tight margins hard. For hot-fill items or food that goes straight into the microwave, Polypropylene (PP) is a must, even if it looks a bit hazy.
Before signing off on raw materials, always ask your custom clamshell packaging manufacturer if they use 100% virgin sheet or a recycled scrap blend. Heavy regrind content ruins hinge flex-life fast.
Tooling and Prototyping: Securing Precision Draft Angles and Snap Latches
Before thermoforming ovens ever turn on, your CAD files get locked into metal molds. This single step decides how your packaging feels in hand and how well it holds up on the shelf.
Factories usually run initial test samples using CNC resin or temporary plaster-copper molds to check dimensions, draft angles, and locking tension. But for big production runs, high-grade aluminum tooling is non-negotiable because it cools down evenly and holds sharp detail over time. Getting those closure snaps right is a tricky balance. Make them too tight, and shoppers rip the plastic trying to open it in the store; make them too loose, and your product spills out in transit.
A knowledgeable oem thermoformed clamshell packaging factory will build de-nesting lugs right into the mold walls. These tiny bumped ridges stop stacked clamshells from vacuum-locking together on automated packing lines, saving your warehouse crew from wasting hours pulling stuck plastic apart by hand.
Thermoforming and Heating: Wall Thickness Control in Deep-Draw Moldings
The main work happens on the thermoforming line. Plastic sheets get heated until soft, then forced into shape over cooled mold cavities.
Roll-fed plastic feeds continuously into heating tunnels where infra-red panels soften the material just enough without scorching the surface. Vacuum suction then pulls the pliable sheet flat against the mold face while air pressure forces it down into tight corners. Deep-draw designs create a big problem here: plastic gets stretched thin at the bottom corners, leaving weak spots that crack under weight. Skilled engineering teams fix this with plug-assist tooling—foam plugs that physically push material deep into the cavity before vacuum locks the shape.
Working alongside a seasoned wholesale plastic clamshell packaging supplier keeps your factory using ultrasonic gauges to check corner wall thickness constantly throughout the run.
Trimming, Perimeter Finishing, and Quality Control
Right after the formed sheet cools down and sets hard, it feeds straight into high-speed trim presses to get stamped out from the master roll.
Heavy-duty matched metal dies or steel-rule cutters punch out the outer edge. If the factory lets their cutting dies dull down, you end up with sharp plastic burrs along the seams. Those jagged edges cut shoppers' fingers and rub holes in master cartons during ocean transit. Factories also need to optimize gang-mold layout at this stage—how many units fit onto a single sheet—because poor nesting wastes paid-for plastic.
Quality checks here must focus on hinge fatigue, snap alignment, and clean edges. Partnering with a reliable bulk clamshell packaging thermoforming factory keeps strict tolerance checks active, stopping warped edges from jamming downstream closing machinery.
Sealing Operations and Supply Chain Fulfillment
The last thing to figure out is how your fulfillment team or co-packer actually closes the pack once the product sits inside.
Simple self-locking button snaps let workers close packs by hand without buying extra machinery. Face-seal clamshells, where plastic seals directly onto printed papercard backing, offer great visual impact but demand precise heat-seal temperature control so the card doesn't burn. On the flip side, high-value electronics and retail goods usually need perimeter heat sealing or radio-frequency welding to create a real theft barrier.
Locking in your sealing approach with an experienced b2b clamshell packaging container manufacturer makes sure flange widths, lip clearances, and plastic formulas match your exact closing equipment.
Cost Optimization and Vendor Audit Strategies
Once you understand the production workflow, trimming unit costs becomes a straightforward conversation rather than guesswork.
Instead of just demanding price cuts, ask your supplier to review the plastic sheet gauge. Adding subtle reinforcing ribs to flat plastic faces often lets you drop sheet thickness by 10% or 15% without sacrificing stacking strength. Also, always request a sample lot from any new custom clear plastic clamshell supplier to test drop-impact resistance under frozen or hot conditions.
Working with a flexible oem thermoformed plastic clamshell factory allows you to adjust mold layouts early, cutting scrap rates and locking in reliable piece-prices across multi-year supply contracts. When you control every detail—from virgin sheet grade up to precision aluminum tooling—you cut out structural failures and keep goods moving smoothly across global supply chains.
